Surface Area analyzer (BET)

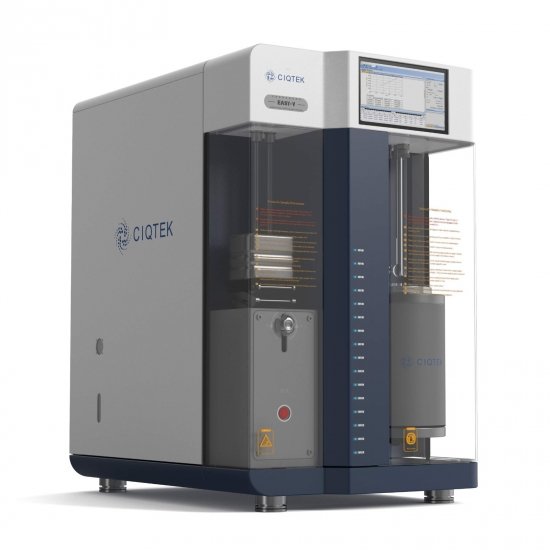

Automatic BET Surface Area & Porosimetry Analyzer | EASY-V 1440

EASY-V 1440 is the BET-specific surface area and pore size analysis instrument developed independently by CIQTEK, using the static volumetric method.

▪  Embedded test computer, safe and stable. 10-inch capacitive touch screen, tablet control experience.

▪  The ball screw integrated lifting system, controlled by the stepper motor, overcomes the shortcomings of common screw types easy to jam, and so on.

▪  The protective safety door can prevent safety accidents caused by accidental contact with low-temperature liquid nitrogen and eliminate the impact of environmental factors on the test.

 ▪  4L stainless steel inner Dewar bottle overcomes the fragile defect of glass Dewar bottle, and high thermal insulation ensures continuous test requirements for more than 72 hours.

▪  Specific surface area testing, range 0.0005 (m2/g) and above.

▪  Pore size analysis: 2 nm-500 nm.

▪  Four analysis stations, simultaneous testing of 4 samples.

▪  Equipped with the two-stage vacuum pump.

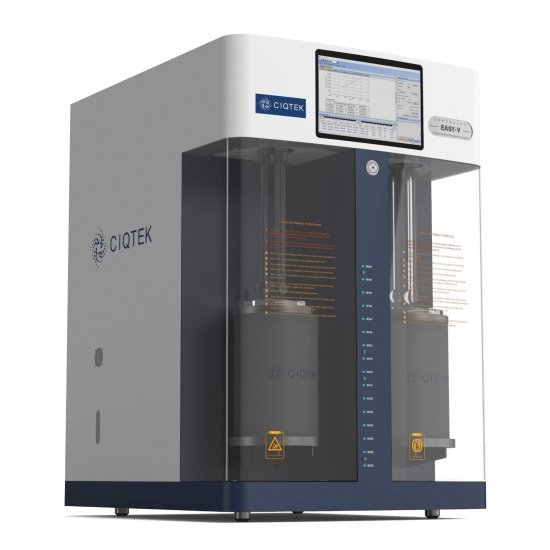

Automatic BET Surface Area & Porosimetry Analyzer | EASY-V 3220 & 3210

EASY-V 3220 & 3210 are the BET-specific surface area and pore size analysis instruments developed independently by CIQTEK, using the static volumetric method.

▪ Embedded test computer, safe and stable. 10-inch capacitive touch screen, tablet control experience.

▪ 2 sample pipe joints and 1 P0 pipe joint per test module. P0 pipe can be used for specific surface area testing cost-effectively.
▪ The protective safety door can prevent safety accidents caused by accidental contact with low-temperature liquid nitrogen and eliminate the impact of environmental factors on the test.
▪ Independent 2 sample processing ports can be performed simultaneously with sample testing to improve testing efficiency.
▪ 4L stainless steel inner Dewar bottle overcomes the fragile defect of glass Dewar bottle, and high thermal insulation ensures continuous test requirements for more than 72 hours.
▪ The ball screw integrated lifting system, controlled by the stepper motor, overcomes the shortcomings of common screw types easy to jam, and so on.
▪  Specific surface area testing, range 0.0005 (m2/g) and above.
▪  Pore size analysis: 0.35 nm-2 nm (micropore), micropore size distribution analysis; 2 nm-500 nm (mesopore or macropore).
▪  Two analysis stations. EASY-V 3220: simultaneous testing of 2 samples; EASY-V 3210: alternate testing of 2 samples.
▪  Equipped with the molecular pump.
